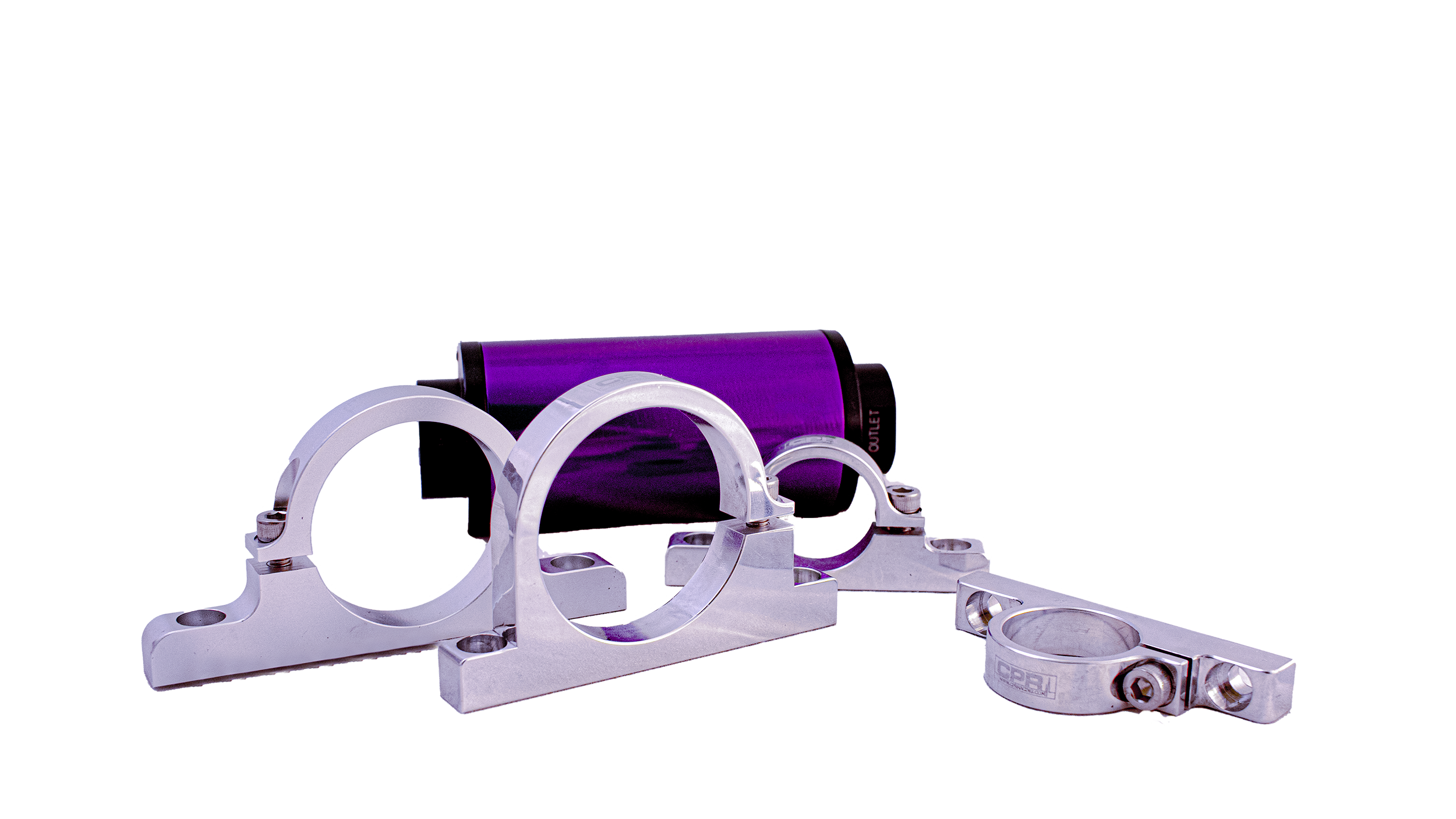

Fuel Filter Bracket – 2.0 ID inch / 50 mm ID

Name: Fuel Filter Bracket - 2.0 ID inch / 50 mm ID
SKU: 130400-50
Availability: InStock

$34.54

3 in stock (can be backordered)

Description

Weight	0.5 lbs
Dimensions	6 × 4 × 4 in

Estimate injector flow changes based on fuel pressure, convert between CC/min and lb/hr, and calculate injector size for horsepower goals.

Formula:

New Flow = Rated Flow × √(New Pressure ÷ Base Pressure)

Rated Flow: Base Pressure PSI: New Pressure PSI:

Formula: lb/hr = CC/min ÷ 10.5

CC/min:

Formula: CC/min = lb/hr × 10.5

lb/hr:

Formula: Injector Size = HP × BSFC ÷ Injectors ÷ Duty Cycle

Horsepower Goal: BSFC: Number of Injectors: Duty Cycle:

Typical BSFC: Naturally Aspirated 0.45–0.55 | Turbo/Supercharged 0.60–0.75 | Recommended max duty cycle: 80%.
