Description

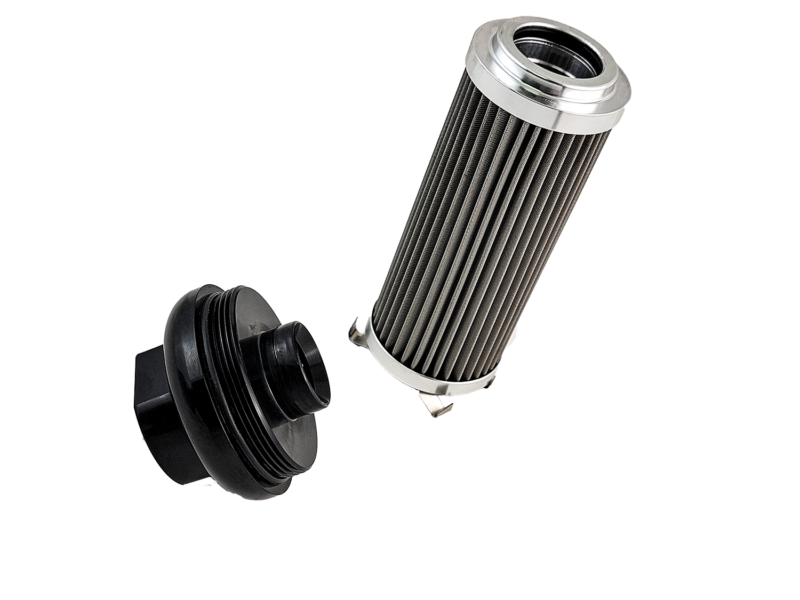

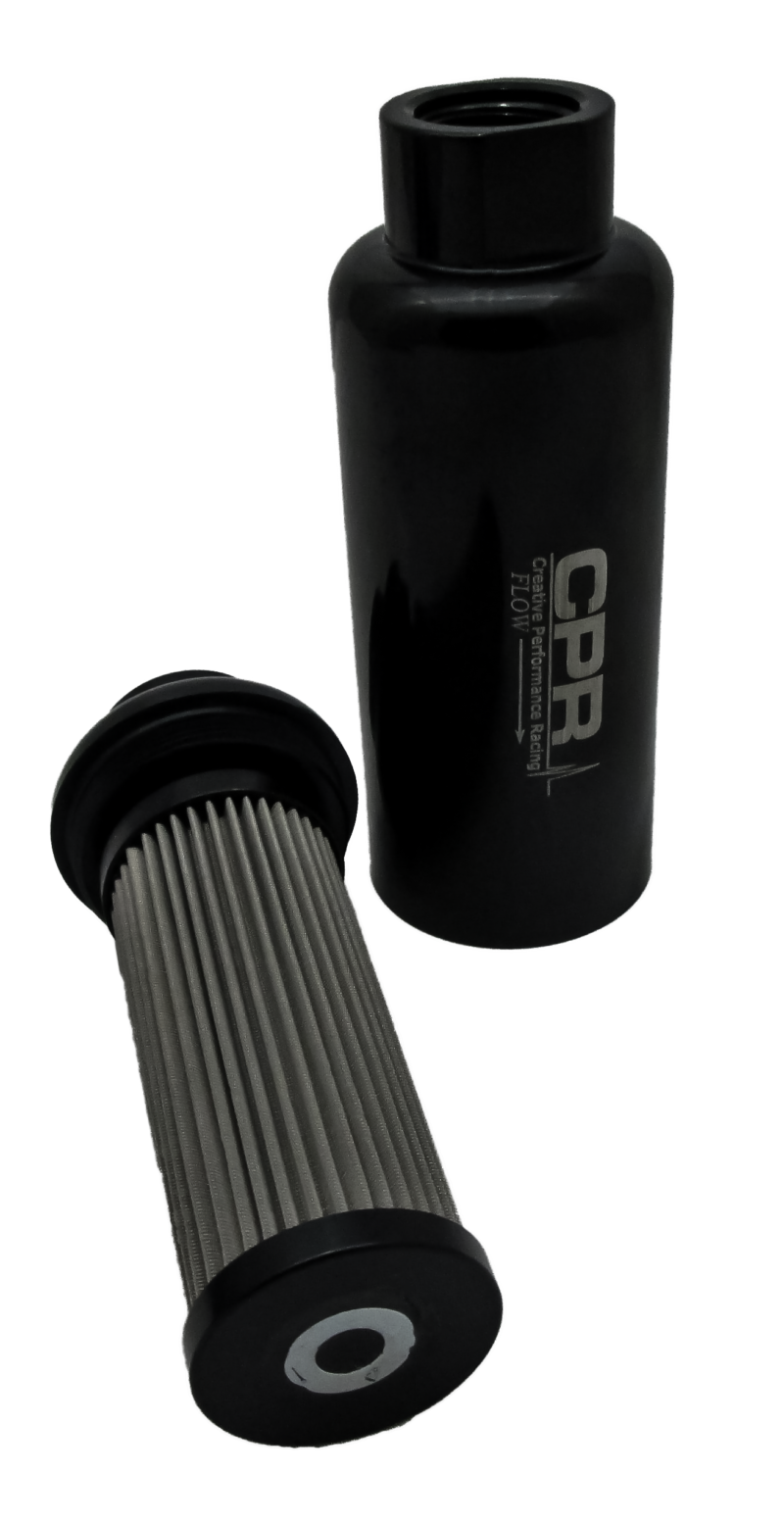

Fuel Filter w/40 Micron Filter, ORB AN -10 inlet & outlet In-Line Fuel Filter,

Pre-filter and After Pump Filter

PN CPR 200210-100

• -10 ports with O-ring for optimistic sealing in high-level fuel pressure applications
• Flows 2,000 lb./hr. with a pressure drop of less than .15 PSI
• A new feature:  a magnet on the inlet side to collect metal debris
• All filter assemblies feature an (ORB) O-ring for positive sealing in high-pressure applications
• CNC-machined from 6061-T6 aircraft aluminum
• ORB -10 ports.  Fittings are included to adapt these filters to AN-10, -08 and -06.  See options.
• Anodized – Black

Tech Spec:

• Size:  5-1/2′ long x 2′ OD
• ORB-10 AN ports

Tech Note:  We recommend that you put a pre-fuel filter to protect the pump and one after the pump to protect the fuel injectors.
