LS Power Box

Description

LS Power Box – Stage 1

LS Power Box – the right solution for a simple fuel upgrade for your LS / LSX motor or LS swap project.  Make getting the fuel you need easy with a CPR Racing Motorcity Power Box Kit.   The best components packaged and ready for your Fuel System upgrade.

LS engine swaps involve a lot of variables and can be a challenge to figure out. With most AN style hose conversion you are on your own to figure out what parts will work together and of course you always have to wonder if the parts you order will last and meet your performance needs long term

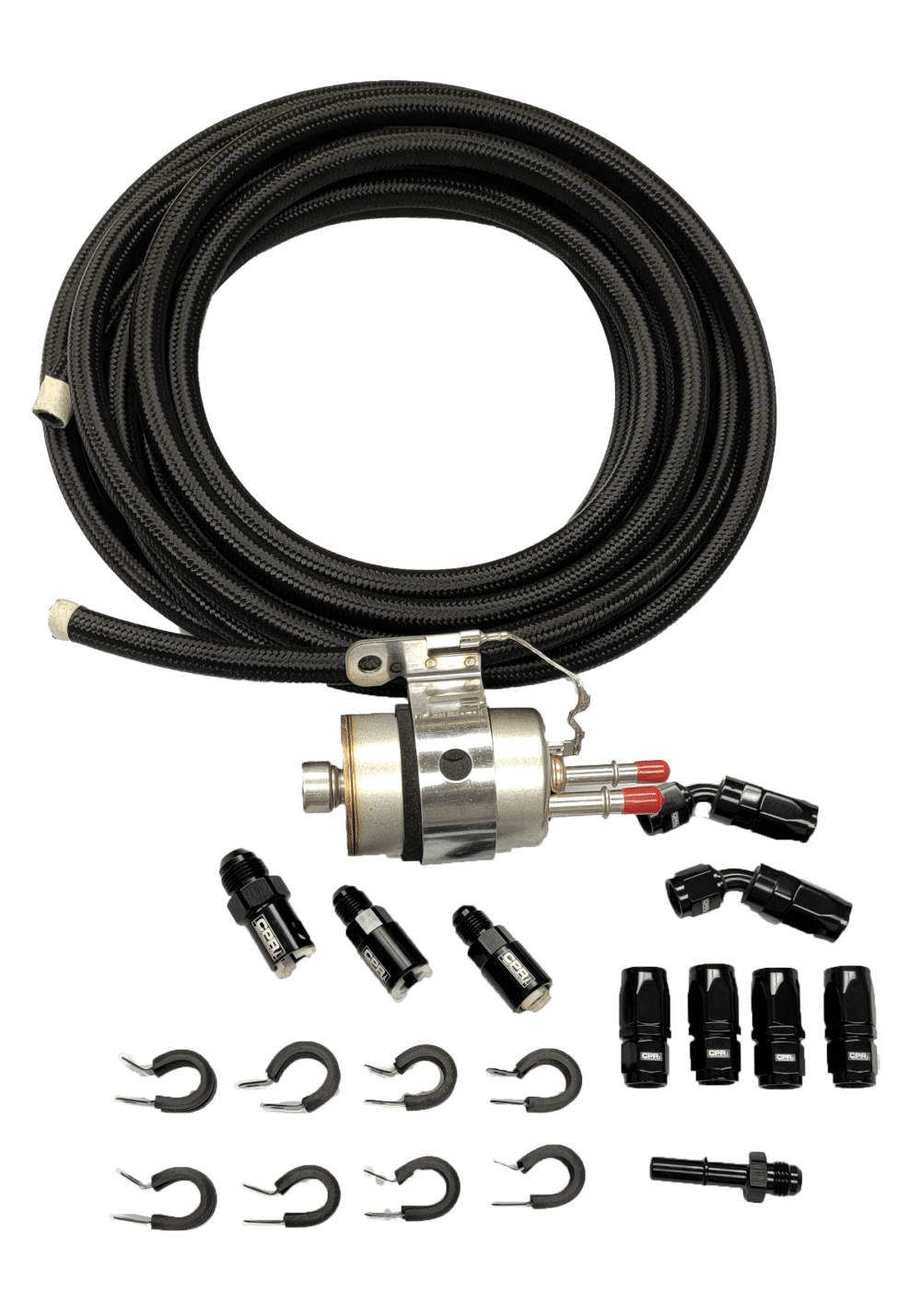

PRO-B5400 Push-on Stage 1

• Fuel Filter/Fuel Regulator
• 3/8″ Male Quick Disconnect to -6AN Male Fitting (Fuel Feed from Regulator to Engine Fitting)
• (x2) 3/8″ Female Quick Disconnect to -6AN Male Fitting (Fuel Regulator Feed from Pump and Fuel Rail Fitting)
• 5/16″ Female Quick Disconnect to -6AN Male Fitting (Fuel Regulator Return Line Fitting)
• (x2) 90°Deg G180590 -6 AN Hose End Fittings
• (20 feet) -6AN PRO-B5400 Black Push-on Fuel Hose
• (x8) P-Clamps

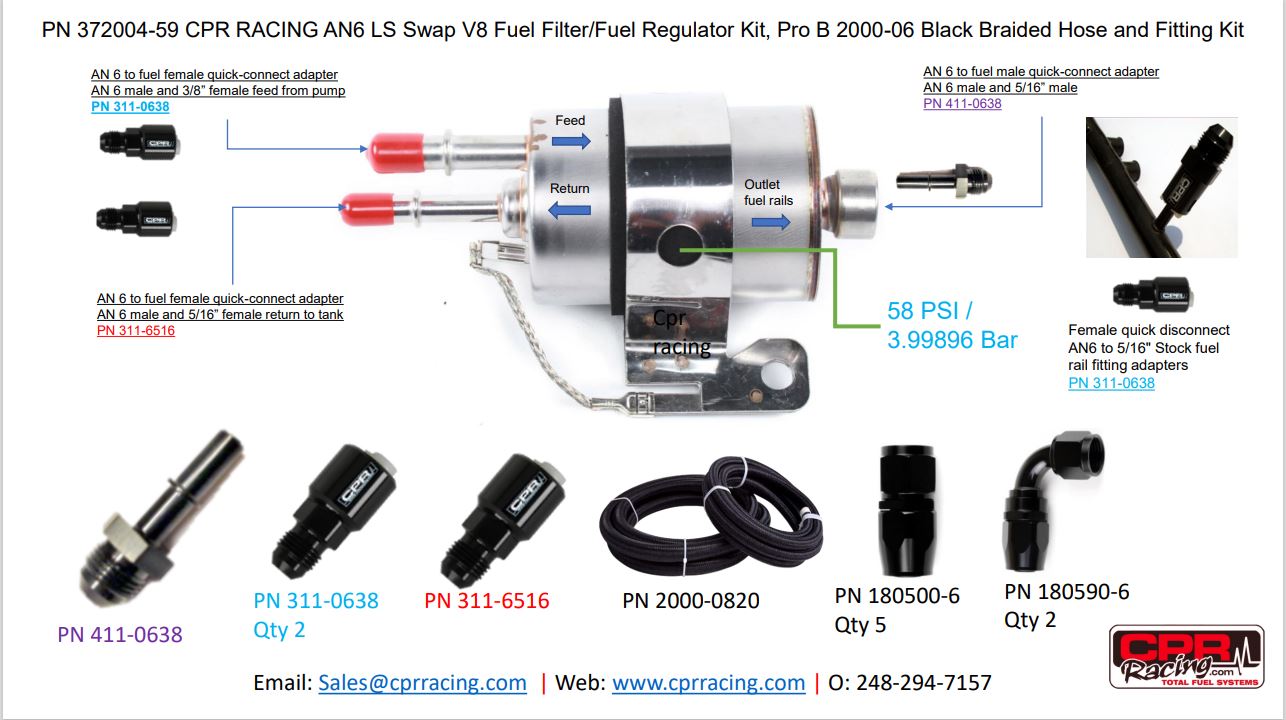

PRO-B2000 Nylon Black Braded Hose Stage 1

•  Fuel Filter/Fuel Regulator
•  3/8″ Male Quick Disconnect to -6AN Male Fitting (Fuel Feed from Regulator to Engine Fitting)
•  (x2) 3/8″ Female Quick Disconnect to -6AN Male Fitting (Fuel Regulator Feed from Pump and Fuel Rail Fitting)
•  5/16″ Female Quick Disconnect to -6AN Male Fitting (Fuel Regulator Return Line Fitting)
•  (x6) Straight -6AN Straight Hose Ends Fittings
•  (20 feet) -6AN Black Braided PRO-B2000 Fuel Hose
•  (x8) P-Clamps
•  Magnetic Soft Jaw Nylon Vise

• PRO-4000 PTFE Braided Fuel Hose Stage 1 Kit
• Fuel Filter/Fuel Regulator
• 3/8″ Male Quick Disconnect to -6AN Male Fitting (Fuel Feed from Regulator to Engine Fitting)
• (x2) 3/8″ Female Quick Disconnect to -6AN Male Fitting (Fuel Regulator Feed from Pump and Fuel Rail Fitting)
• 5/16″ Female Quick Disconnect to -6AN Male Fitting (Fuel Regulator Return Line Fitting)
• (x2) 90°Deg G180590 -6 AN Hose End Fittings
• (20 feet) -6AN PRO-B4000 PTFE Black Braided Fuel Hose
• (x8) P-Clamps
• Magnetic Soft Jaw Nylon Vise

CPR Racing Power Box kits includes the necessary components to complete your fuel system build for your power goals and budget.   With quality components, customer support and a warranty our Power Box is the right choice for your fuel system.

Reach the next level by adding more quality components like Fuel Rails, Pumps and injectors to your build.
