Description

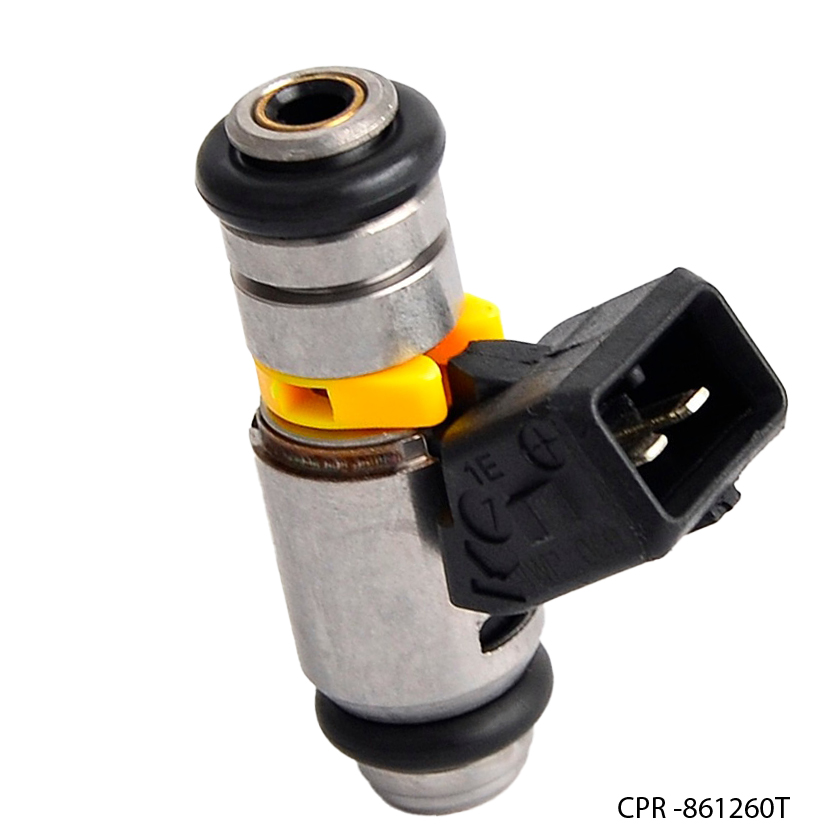

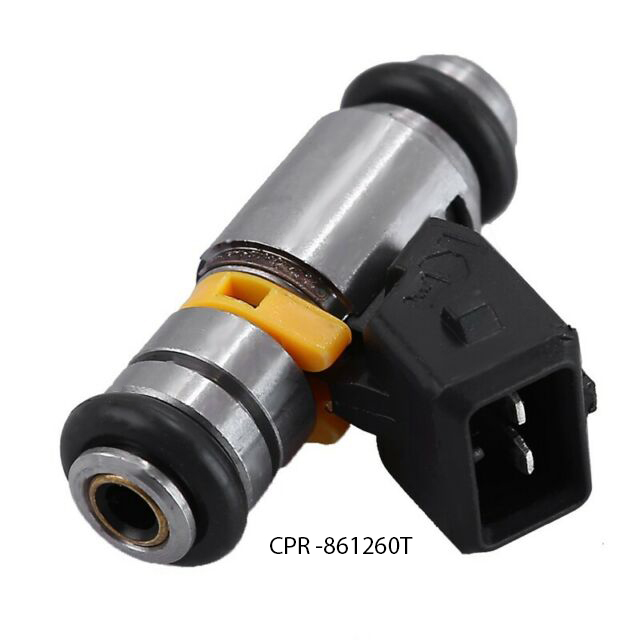

Harley-Davidson, Ducati 996R Injector

• 46.8 lbs/hr; 6.3 GPS, 491 cc IWP 069, COMPACT-length, minitimer connector
• Part Numbers: IWP 069,
• Use for: Marine Mercruiser 350 V8, Harley Davidson, 2001-2002 Ducati 996R*

Tech Data:
Injector Body Design: All stainless-steel body with fuel resistant composite plastic connector, Yellow band
Electrical connector type: Jetronic, EV1
Cone Spray Nozzle: Single-hole disc, 15 degrees
Length: 1.85 inches, 47.2 mm
O-ring to o-ring on center: 1.5 inches, 38 mm
Body Diameter: 0.60 inches, 15.3 mm
O-rings: Top and bottom, .57 inches, 14.5 mm
Weight: 35 grams
Operating temp range: -30 – 110 C
Fuel pressure range: 36 – 72.5 PSI
Maximum duty cycle: 95%
Resistance: 14.5 Ohms

Flow rate – Static:
43.5 PSI, 3 BAR: 491 cc/min – 6.3 GPS
58.0 PSI, 4 BAR: 563 cc/min – 6.9 GPS
72.5 PSI, 5 BAR: 629 cc/min – 7.8 GPS

*The 2001-2002 R suffixed-version of the 996 is, arguably, one of the most powerful machines in its class, boasting a maximum power output of 135 horsepower and 105 Nm of torque from its liquid-cooled, four-stroke, 996cc, 90-degree desmodromic V-Twin, that was paired to a six-speed manual transmission with a chain final drive.
