Description

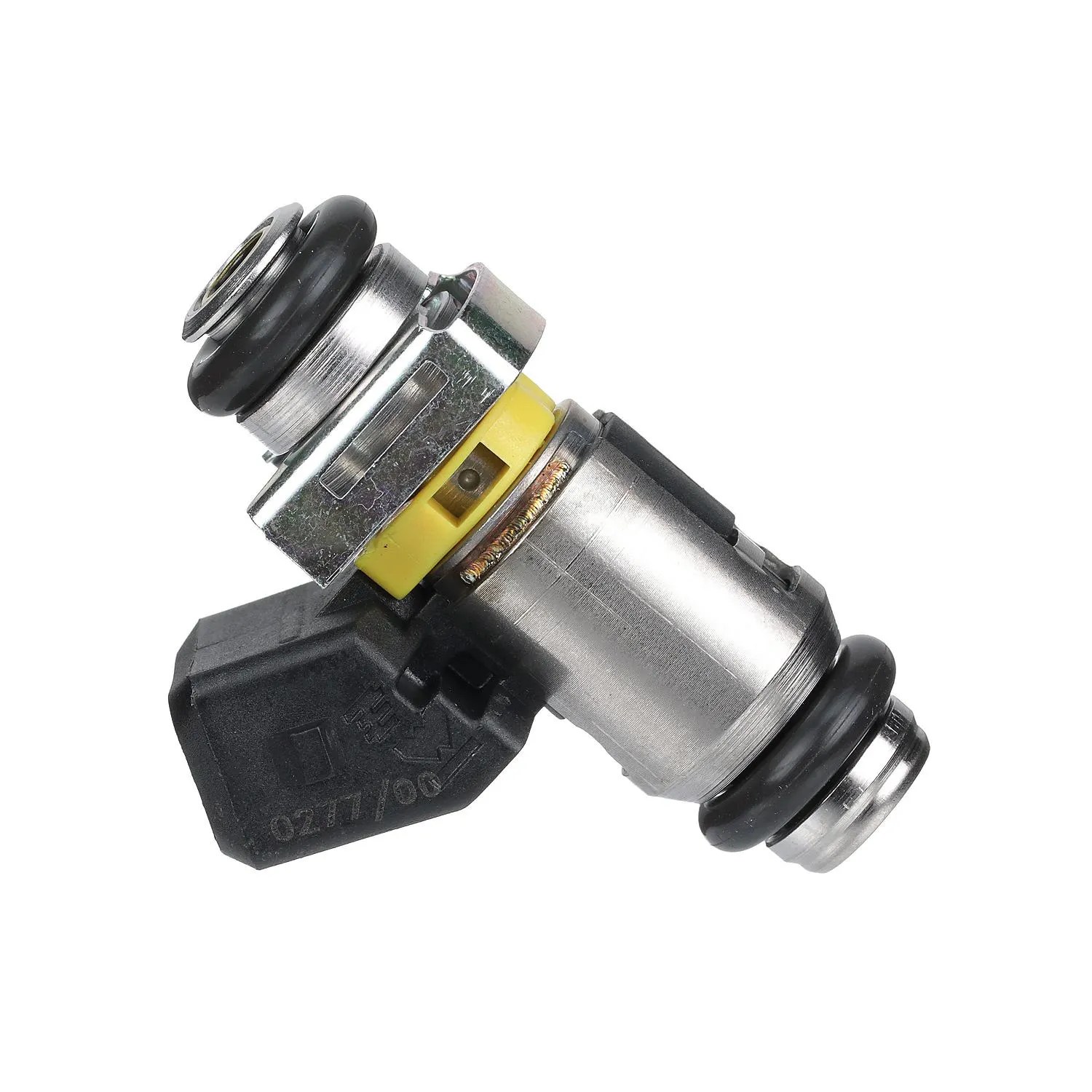

New OEM MPI Fuel Injector – 861260T, 861260
Mercury Marine / Mercruiser New OEM Fuel Injector, Sterndrive, 861260T 861260
Fuel injector 861260T is for 350 Magnum MPI and MX 6.2L MPI MerCruiser stern drive and inboard engines (model year 1998 through 2001).
Also used for 454 Magnum, 502 Magnum, and 8.2L MPI stern drive and inboard engines (model year 1999 through 2001).
See your owner’s manual for replacement recommendations based on your engine use.
C300-861260
Use for: Marine Mercruiser 350 V8,
Tech Data:
Injector Body Design: All stainless-steel body with fuel resistant composite plastic connector, Yellow band
Electrical connector type: Jetronic, EV1
Cone Spray Nozzle: Single-hole disc, 15 degrees
Length: 1.85 inches, 47.2 mm
O-ring to o-ring on center: 1.5 inches, 38 mm
Body Diameter: 0.60 inches, 15.3 mm
O-rings: Top and bottom, .57 inches, 14.5 mm
Weight: 35 grams
Operating temp range: -30 – 110 C
Fuel pressure range: 36 – 72.5 PSI
Maximum duty cycle: 95%
Resistance: 14.5 Ohms
Manufacturer’s Part Number: 861260T, 861260
